1 LAZER kaugtuli LINEAR-6 ELITE 9-32V 4050lm

Kirjeldus

Tänavalegaalsed tuled ECE R112 REF 17,5 ( WRC 2018 LED light solution ) Komplektis: x1 Linear-6 Elite LED Lamp x1 Anti-Theft Side Mount (1127k) x1 Wiring and Installation Instructions

Voltage Range (DC)10-32V

LED Life50,000 hours

Weight495 gr

HIGH BEAM FUNCTION Total Luminous Flux4050

LmTotal Driver ‘FOV’ Flux †2884

LmColour Temperature5000K

Number of High Output LEDs12

Power Consumption42 Watts

Current Draw (at 14.4V)2.9

AmpsStart-up Time *100ms

CERTIFICATION High BeamECE R112ECE Reference17.5

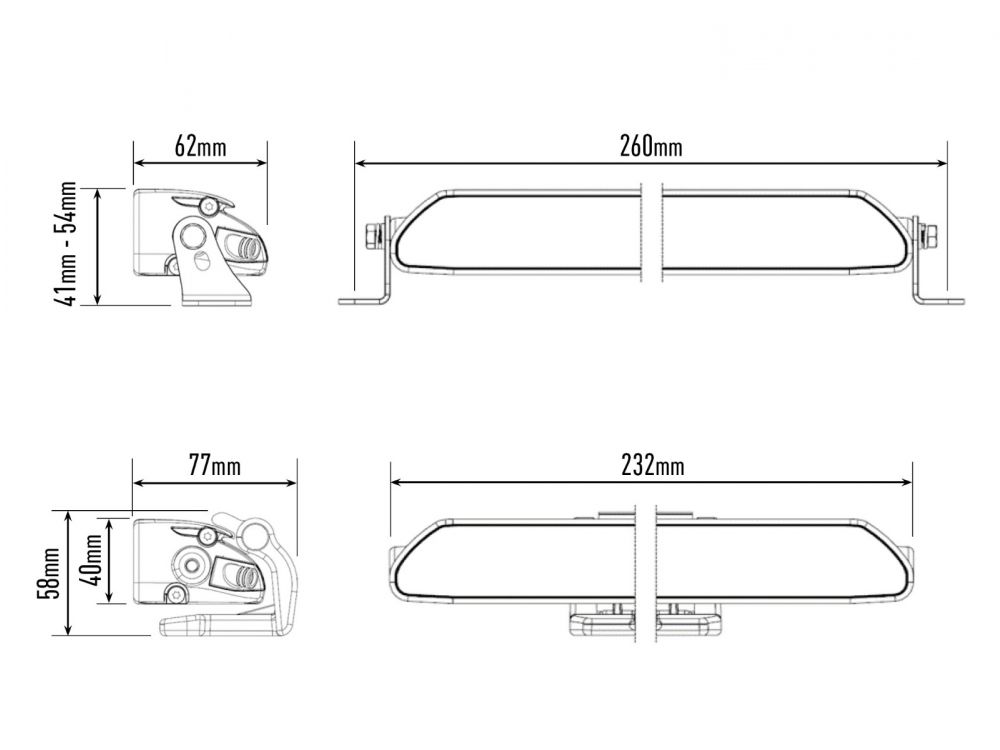

DIMENSIONS Width232 mmDepth62 mmHeight40 mm

PHOTOMETRIC DATA Horizontal Beam Angle42 degrees0.25 lx Line563 metres0.5 lx Line398 metres1 lx Line282 metres3 lx Line163 metres
